Home / LED / Proton Pro 200W

Proton Pro 200W

proton-plus-200w
cof
cof
proton-plus-200w
cof
cof
Previous
Next
  • Description
  • Specifications

Description

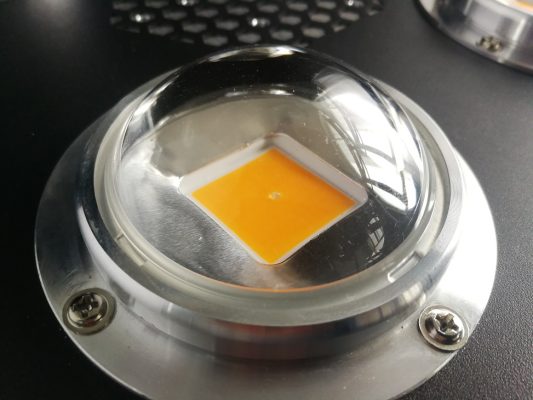

Same as their brothers, Proton Pro 200w, unlike the vast majority of the other COB grow light LEDs we can find in the market not incorporating lenses, comes with authentic bubble COB lenses. As a result, performs better light distribution.

Stable LED light source: new LED flip chip system. The light source adopts the flip-chip process, more secure (flip chip is a type of LED encapsulation) that makes the light source more stable and have a longer lifespan.

It also incorporates an excellent cooling system through the use of internal aluminum substrate + fans, and assembles Bridgelux COBs.

Adjustable, option 100w or 200w.

Specifications

ProductoProtonPlus 200W
Potencia200W ± 5% aprox
VoltajeAC85-265V 50-60Hz
LED50W x 6PCS Bridgelux
EspectroFull Spectrum (380nm-780nm)
Angulo90°
LED DriverIsolated constant
MaterialAcero Inox/Aluminio
Disipación de CalorVentilador + Aluminio
Dimensión280*265*55mm
Embalaje47 x 30 x 12 CM
N.W.3.8 kgs
G.W.4.2 kgs
Área cobertura80 cm x 80 cm aprox
Factor de potencia0.95
Entorno de trabajo seguro20 ~ 40 ℃, 45% ~ 95% RH
ProductProtonPlus 200W
Power200W ± 5%
VoltageAC85-265V 50-60Hz
LED50W x 6PCS Bridgelux
SpectrumFull Spectrum (380nm-780nm)
Angle90°
LED DriverIsolated constant
MaterialStainless Steel / Aluminum
Heat DissipationFan + Aluminum
Dimensions280*265*55mm
Package47 x 30 x 12 CM
N.W.3.8 kgs
G.W.4.2 kgs
Coverage area80 cm x 80 cm approx
Power Factor0.95
Safe work environment20 ~ 40 ℃, 45% ~ 95% RH

More details

PPFD TEST 90° PROTON 200W

AlturaPPFDumol/s/m-2Área Cobertura
60 cm49580 cm x 80 cm aprox
HeightPPFDumol/s/m-2Coverage area
60 cm49580 cm x 80 cm approx

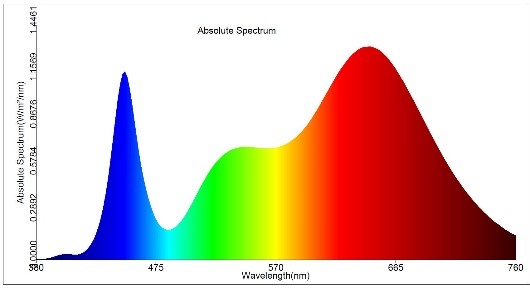

Spectrum

Dimensions
